GalvanoTest

GalvanoTest: Coulometric coating thickness measurement

The anodic dissolution method, also known as the coulometric method, functions similarly to the electroplating process: an electrolyte separates individual metal coatings from the substrate with the help of an electric current. By measuring the current and time, the GalvanoTest determines the thickness of the separated coating.

Measuring range between 50 nm and 75 µm

Measuring surface ranging between 0.25 and 8 mm²

Optimal measurement concept.

Predefined measurement tasks for different coating systems

Intuitive operation.

Color display and graphically supported user guidance

Individually expandable.

Extensive accessories enable practical work and safe storage

Maximum flexibility.

Exact coating thickness measurement of almost any coating-substrate-combination

Measuring method:

Coulometry by anodic stripping

Measured value memory:

3,000 in 50 applications

Measuring Range :

Depending on the coating-base material combination and the removal speed 0.02 - 50 µm

Inbuilt Feature :

Almost 100 predefined measuring tasks for different coating systems (such as zinc on iron or nickel on brass)

Speed Selection :

Simple selection of the detachment speed (0.1 - 50 µm/min) and the detachment area (0.6 - 3.2 mm Ø)

Measuring method: Coulometry by anodic stripping

Product Brochure

Voltage Representation :

Graphic representation of the voltage curve at the measuring cell

Applied Standard :

Functions for STEP test measurement in accordance with ASTM B764 - 04 and DIN EN 16866

Data Transfer mode :

Simple data transfer via USB interface

The GalvanoTest coating thickness measurement gauge is available in two variants:

• GalvanoTest 2000: the electrolyte is circulated by a pulsator nozzle.

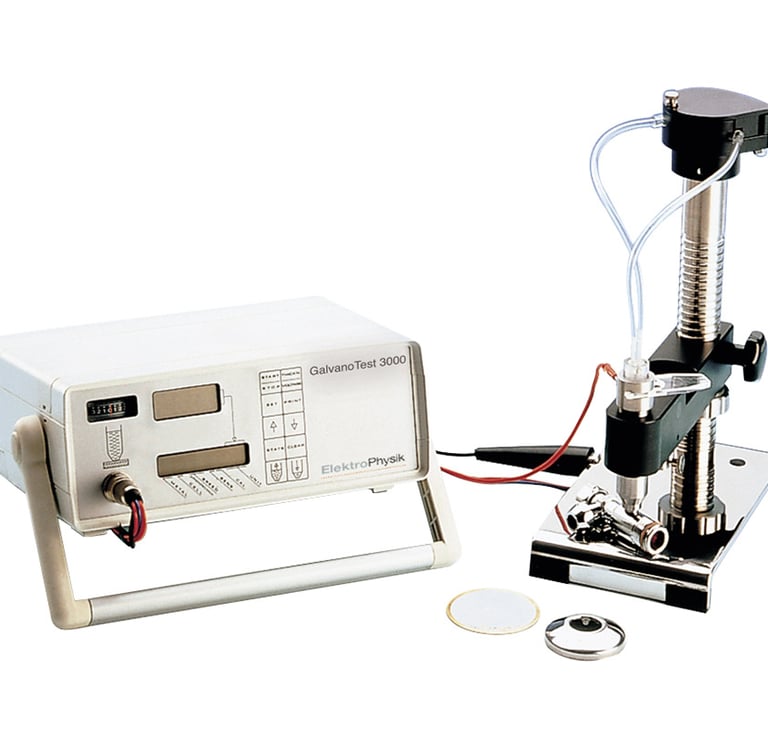

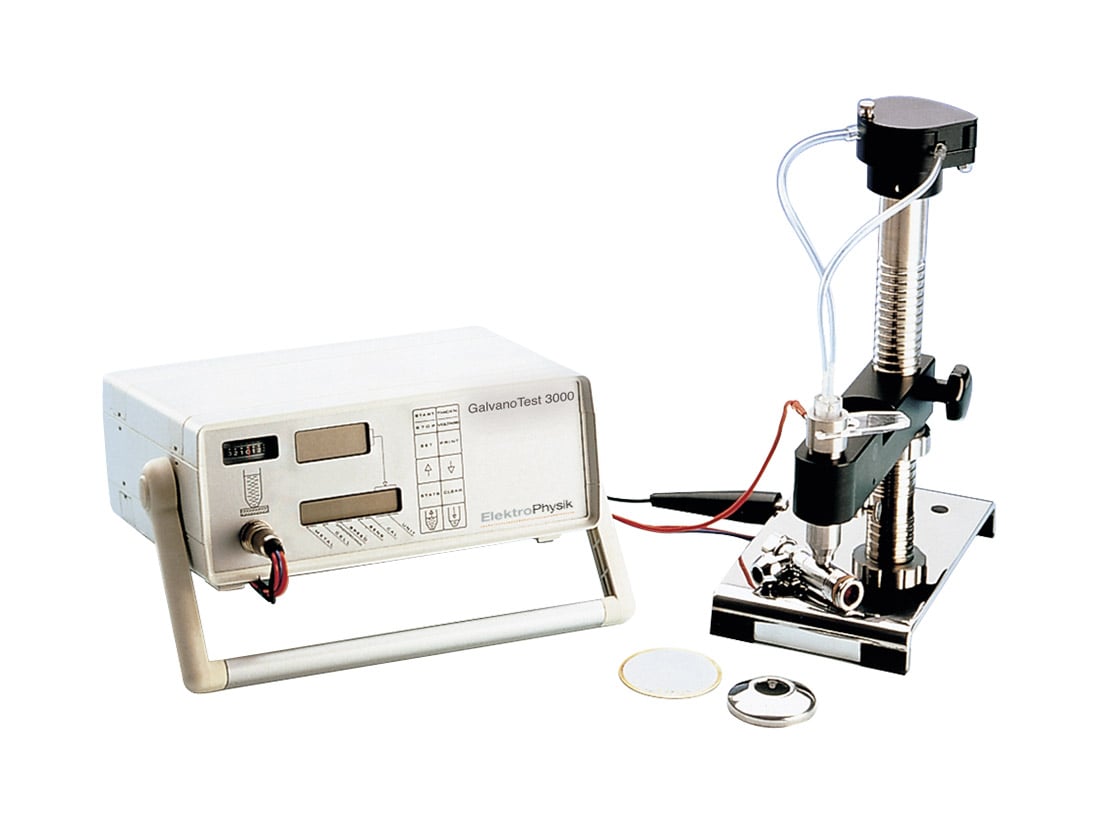

• GalvanoTest 3000: large electrolyte volumes circulated by a circulation pump enable quick serial measurements. Suitable for use on very small parts and for the measurement of gold layers.

Ideally suited to measuring coating thickness in virtually any single or multi-layered coatings such as chrome, nickel, cadmium, copper, brass, silver, gold, tin or zinc both on metals and non-metals.

Property Value

• interface for MiniPrint data printer

• interface for an RS 232 C for connection to a PC

• analog output for connection to an x-t recorder to chart voltage curve

• Electrolyte alarm/saturation indicator

• gasket 4 mm2/6.2 x 10-3 inch2

• mask 1 mm2/1.55 x 10-3 inch2

• mask 0.25 mm2/0.388 x 10-3 inch2 (deplated area nearly invisible)

• electrolyte cup 0.25 mm2 to approx. 16 mm2/(0.388–24.8) x 10-3 inch2 (optional)

• maximum of 8 deplating speeds in the range of approx. 0.3–40 μm (0.012–1.57) mils/min

• directly adjustable calibration factors; individual setting according to metal type and measuring surface

• calibration setting with the aid of thickness standards

• variable shut-down speed to suppress interference or for measuring alloy zones between coating and substrate

• number of memories for various metals: 18

• number of readings which can be stored and evaluated: 2000

• non-volatile memory retains all calibration settings, readings and statistical values after the gauge has been switched off

• more than 70 coating/substrate combinations (standard version)

• coatings on flat and curved surfaces

• coatings on small components and wires

• 10 preset types of metal: Cr, Ni, Cu, brass, Zn, Ag, Sn, Pb, Cd, Au

• 8 further metal coatings for special applications

• measuring range: 0.05…75 μm

• display of 6 statistical values – mean value, standard deviation, coefficient of variation, number of readings, highest and lowest single reading

• immediate or delayed display of statistical values

• immediate or delayed print-out of readings and statistics

• display and print-out of date and time – year, month, day, hour and minute

• 5 % of reading on a measuring area of 8 mm2 after calibration

Coating/substrate combinations

Measuring Surface

Adjustable settings for optimum results

Data storage with GalvanoTest

Statistical evaluation

GalvanoTest interfaces for peripheral devices

Measuring uncertainity

• 260 mm x 250 mm x 100 mm/10.24 inch, 9.85 inch, 3.94 inch; approx. 2.5 kg (gauge)
  support with integrated pump approx. 3.0 kg

Dimensions and Weight

• print-out diagram showing measuring cell voltage levels over the coating; especially useful for detecting alloy zones between coating and substrate; with MiniPrint

• operator guide to the alphanumeric displays with language option:German, French or English

• unit of measurement in either metric (μm) or British system (mils)

• when switched on, the gauge displays details of the last readings

• illuminated voltmeter for monitoring the deplating process

• easy to use – clearly-designed controls and easy-to-follow operating instructions with numerous examples

• wide range of extras for measurements on small components, wire and multi-layer coatings

Features
