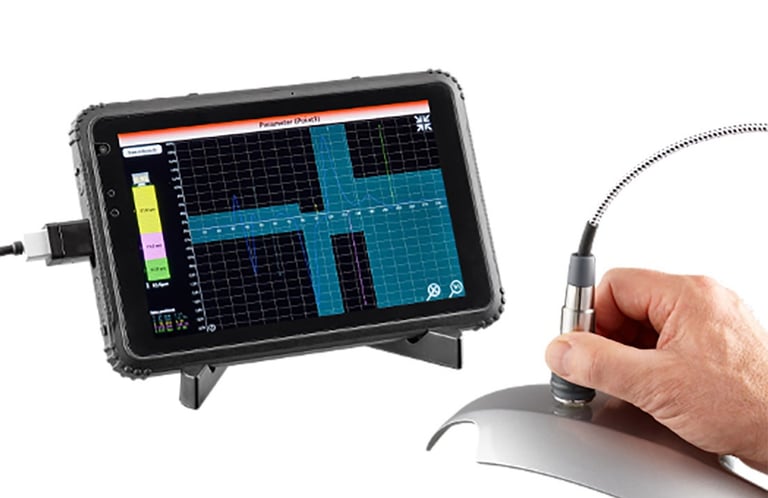

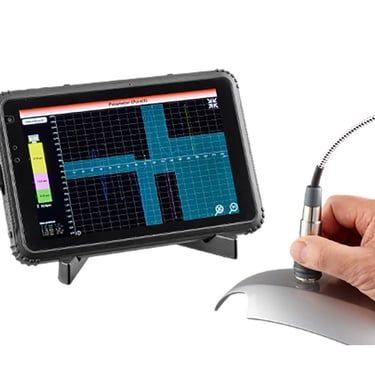

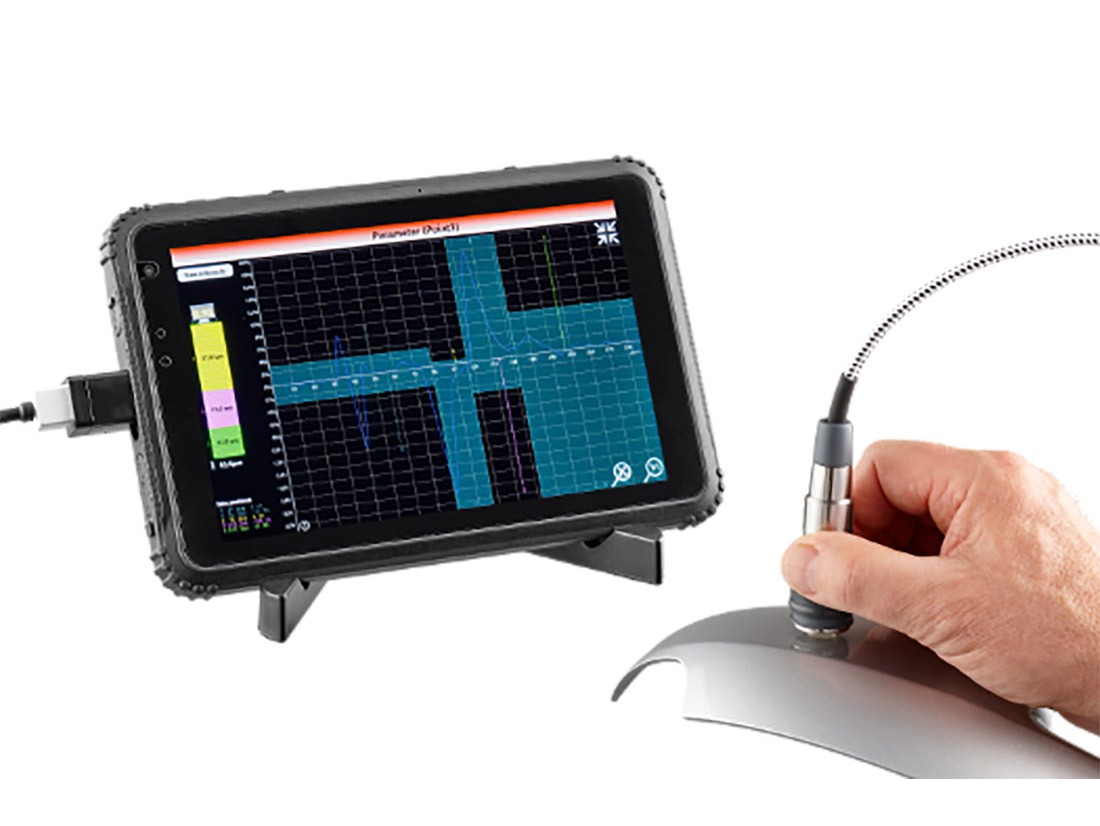

QuintSonic T:All measuring parameters on one screen The upgrade of the well proven QuintSonic coating thickness gauge combines measuring system and evaluation software in an ultrasonic sensor directly connected to an industrial tablet. QuintSonic T measures the individual thickness of up to 8 layers on different substrates (e.g. metal, plastics, GFRP, CRFP, WPC, fibre reinforced composites) using the ultrasonic run-time method. Measurement of all layers is performed in only one operation.

Product Video

| Quick evaluation of the measuring signal | Over 40 measuring values per minute |high accuracy and repeatability owing |(SIDSP®)

Key Features

QuintSonic T measures of up to eightcoatings in a single operation.

It can measure polymer coatings such as paints, varnishes and synthetic material, as well as glass, ceramic or metallic coatings on virtually any substrate.

Precise and easy to handle, QuintSonic T can measure all typical coating systems such as:

Lacquers on synthetic material
Synthetic material on wood
Glass on metal
and many more.

DIN EN ISO 2808, method 10

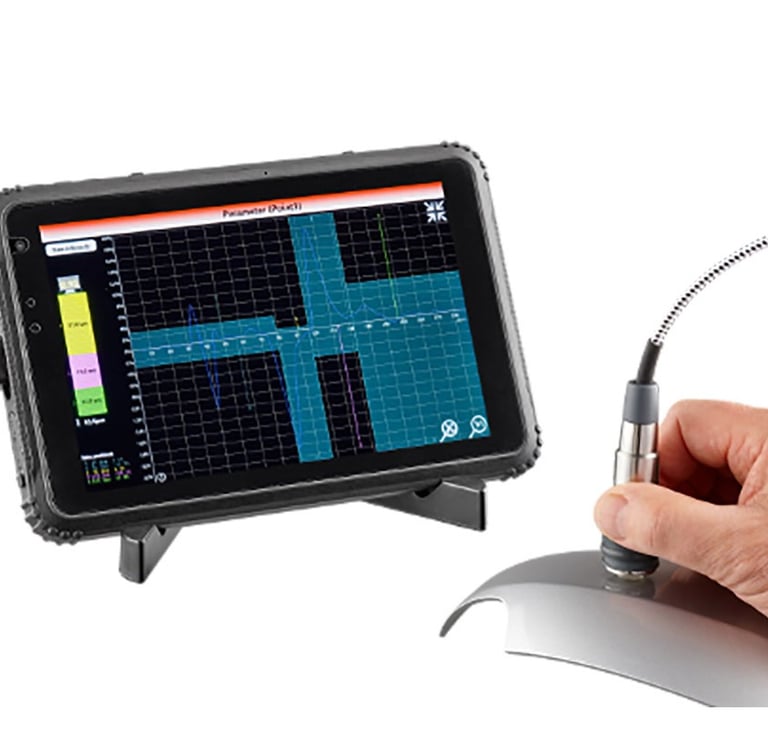

Featuring a generous 8-inch display, QuintSonic offers a user-friendly overview of the result of measurement as well as the corresponding course of the ultrasonic signal (A-scan). Parameters for signal adjustment are displayed simultaneously and can thus bie adapted to the current measurement with significant time savings. Subsequient adjustment of parameters is also possible through the new memory option for A-scans.

In addition, QuintSonic T is characterized by simple handling via touch screen and intuitive user guidance. The measuring program also offers a clear data structure with integrated test report generation.

QuintSonic T is also ideally suited for harsher environments due to IP 67 & MIL-STD 810 G and extremely resistant Gorilla® glass
