Predefined measuring tasks
for different layer systems

Product Video

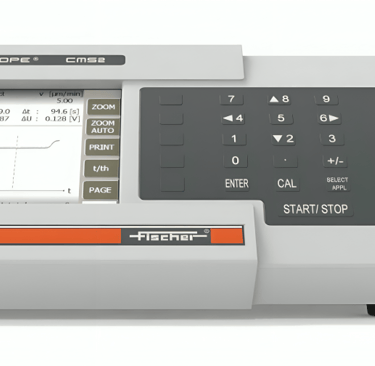

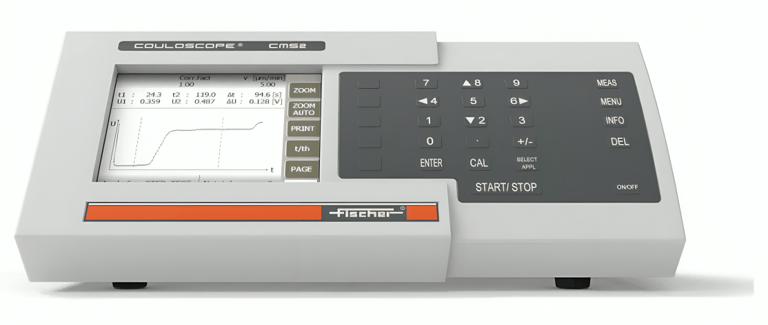

COULOSCOPE CMS2 and CMS2 STEP

Coulometry specialist.

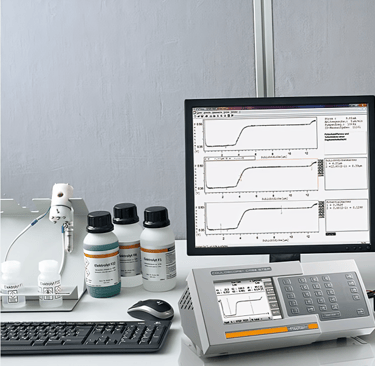

Benchtop instrument for measuring coating thicknesses and electrochemical potentials using the coulometric method.

Measuring of the
entire layer structure

Simple calibration for a
maximum degree of accuracy

Coulometric coating thickness measurement for quality control.

Above a certain coating thickness, using X-ray fluorescence to measure coating thicknesses non-destructively will reach its limits. This is where the COULOSCOPE® CMS2 comes into play. Use the coulometric method to measure the coating thickness of almost all metal coatings precisely and reliably by electrolytic layer detachment. This easy-to-use benchtop device offers maximum flexibility, as it can be used for a wide range of coating-substrate combinations.

Optimal measurement concept.

Predefined measurement tasks for different coating systems

Intuitive operation.

Color display and graphically supported user guidance

Individually expandable.

Extensive accessories enable practical work and safe storage

Maximum flexibility.

Exact coating thickness measurement of almost any coating-substrate-combination

Many single and multi-layer coatings encountered in practice can be accurately measured with the COULOSCOPE CMS2

In addition to coulometric coating thickness measurement, also measure electrochemical potential with the COULOSCOPE CMS2 Step

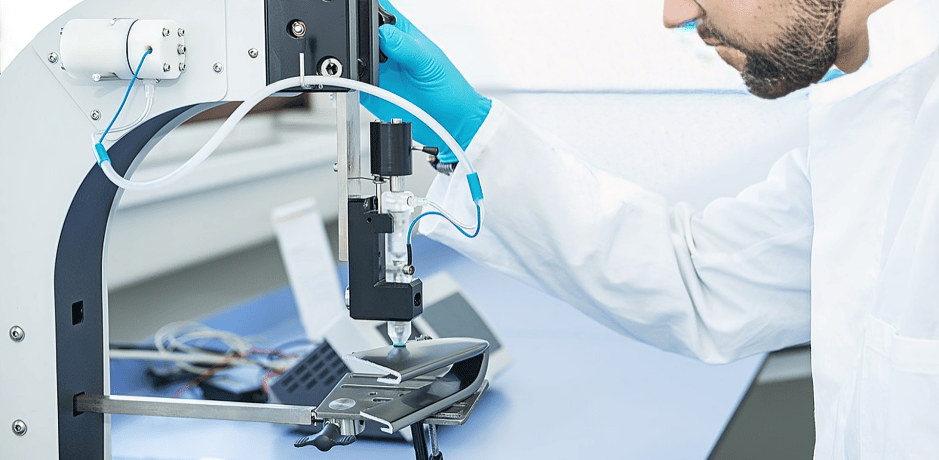

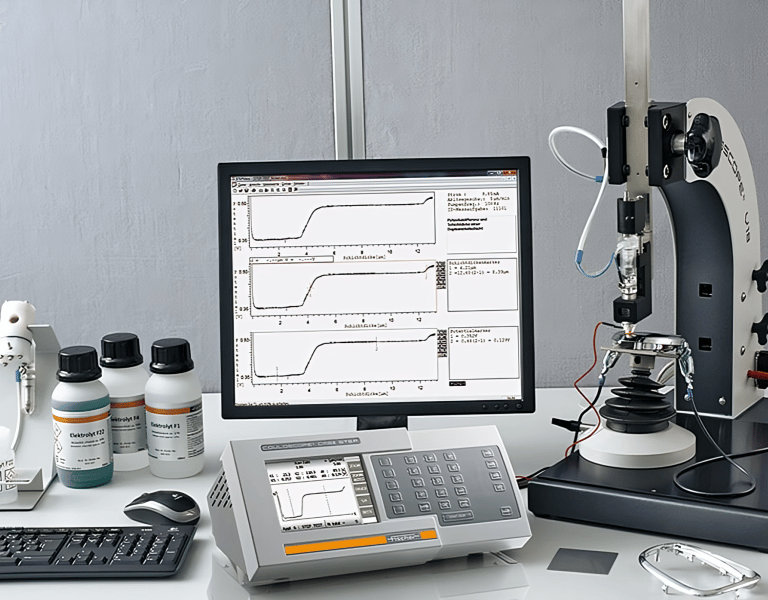

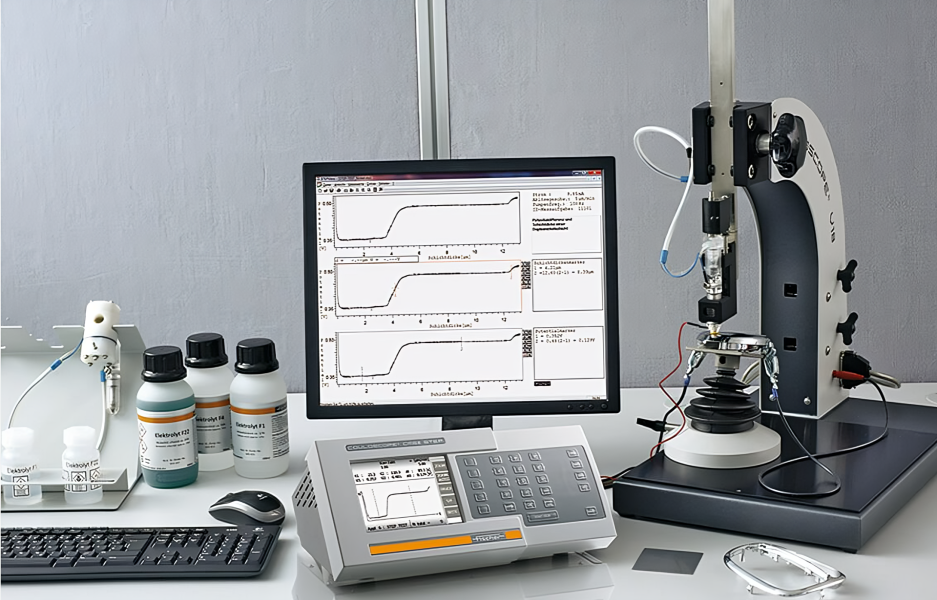

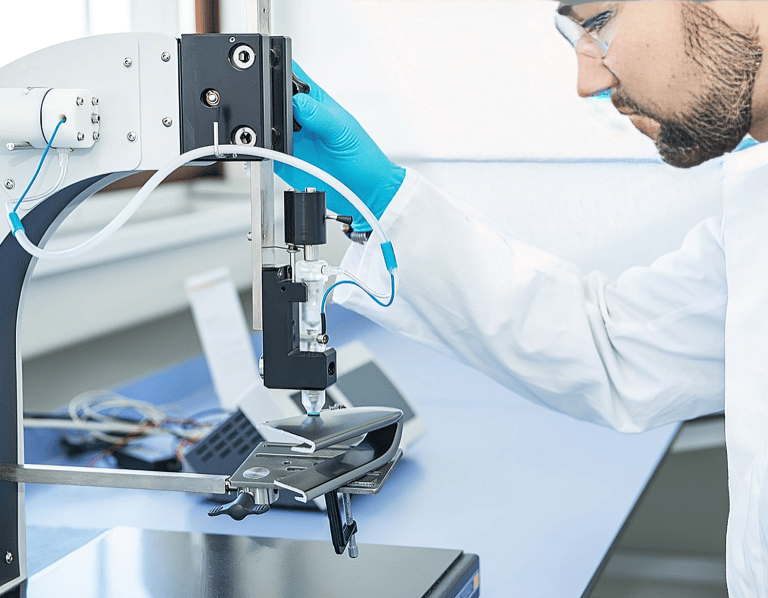

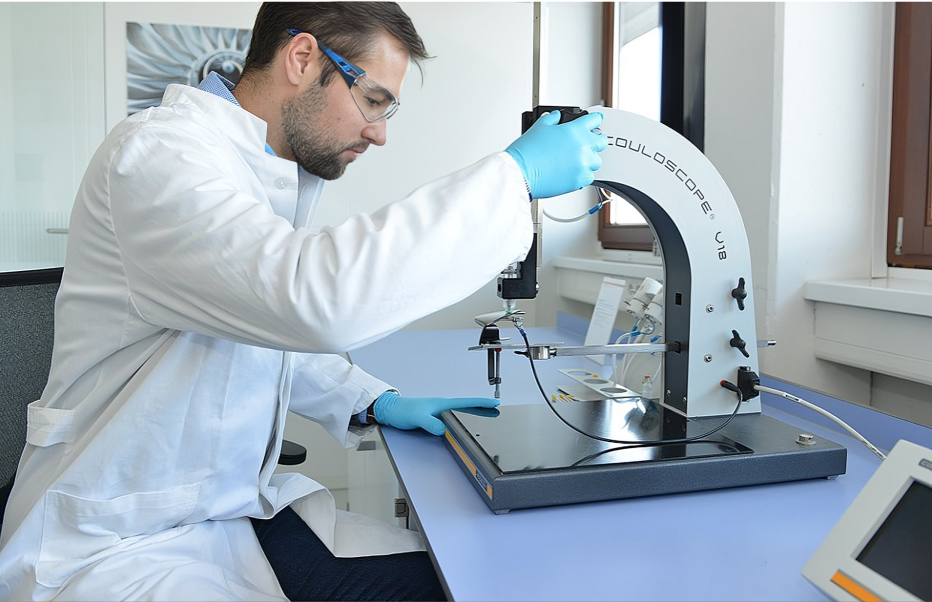

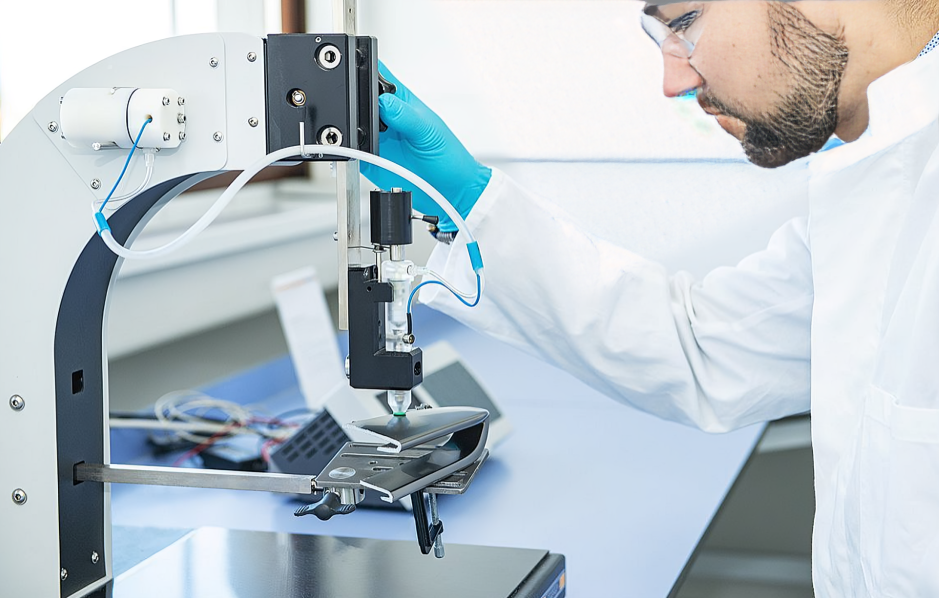

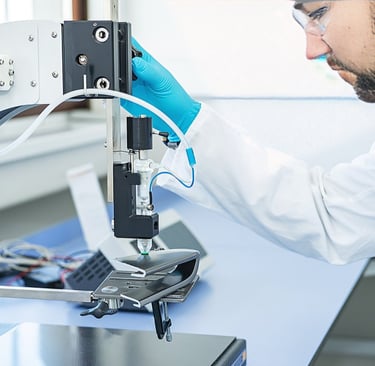

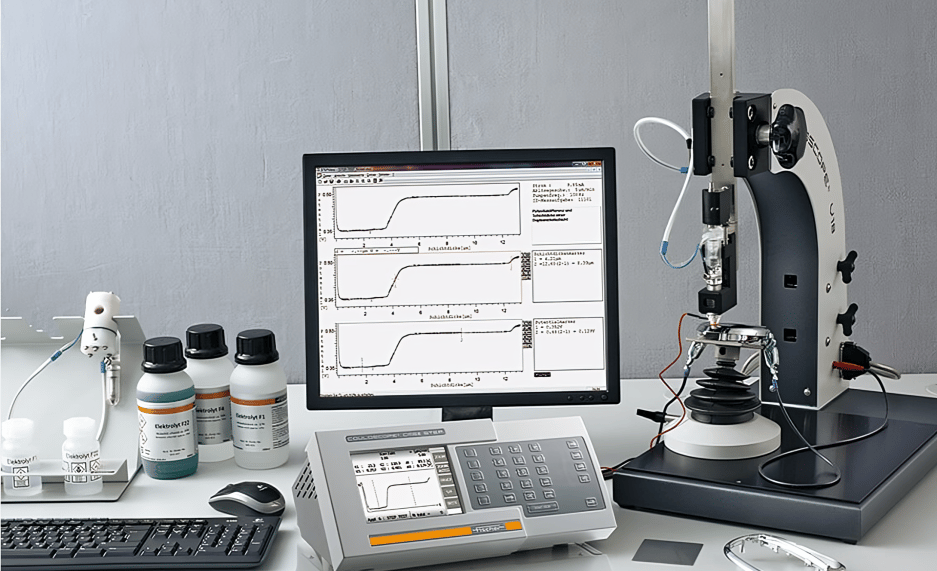

A functional measuring station consist of a COULOSCOPE CMS2 or CMS2 Step and a stand with measuring cell

When non-destrutive coating thickness measurement using XRF reaches its limit above a certain coating thickness

Measuring method:

Coulometry by anodic stripping

Measured value memory:

3,000 in 50 applications

Measuring Range :

Depending on the coating-base material combination and the removal speed 0.02 - 50 µm

Inbuilt Feature :

Almost 100 predefined measuring tasks for different coating systems (such as zinc on iron or nickel on brass)

Speed Selection :

Simple selection of the detachment speed (0.1 - 50 µm/min) and the detachment area (0.6 - 3.2 mm Ø)

Measuring method: Coulometry by anodic stripping

Product Brochure

Voltage Representation :

Graphic representation of the voltage curve at the measuring cell

Applied Standard :

Functions for STEP test measurement in accordance with ASTM B764 - 04 and DIN EN 16866

Data Transfer mode :

Simple data transfer via USB interface

V18

Description

Part No.

Request

V24

V26

V27

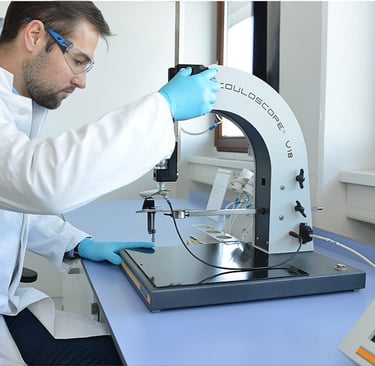

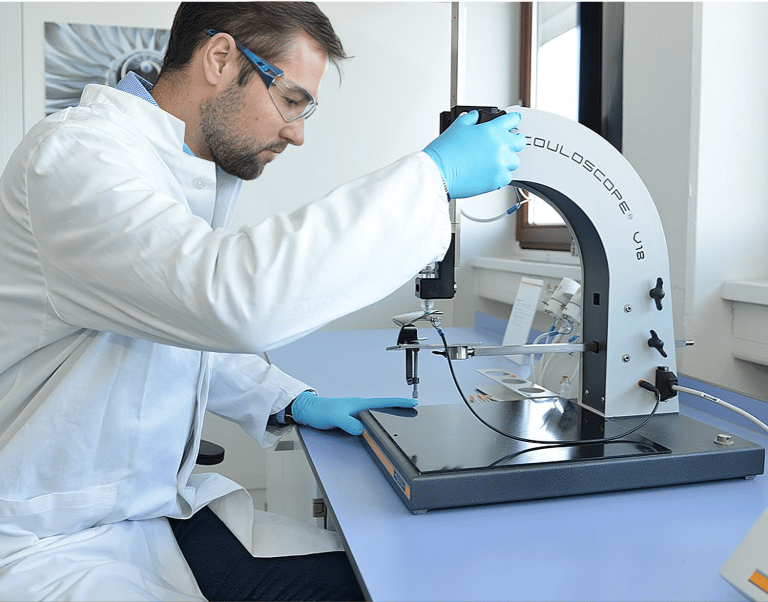

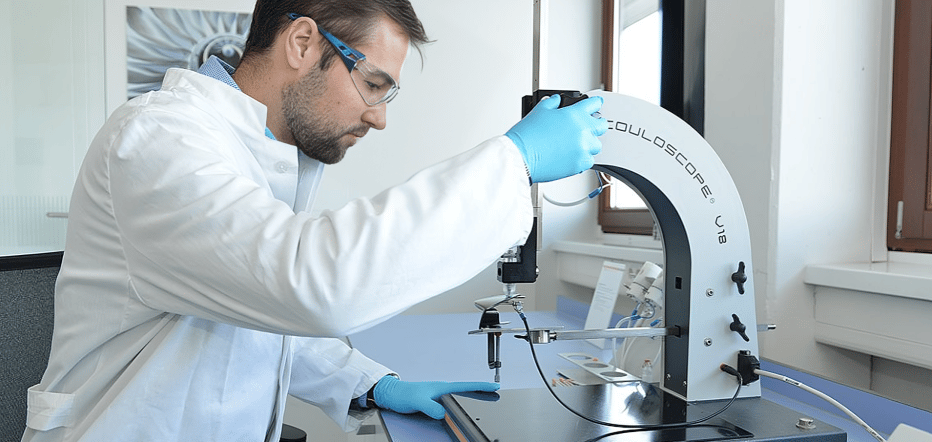

Stand for big and small parts with random forms. A support arm is available for middle and small parts. Controlled filling and emptying of the cell by means of a pump. Multiple measurements with one cell filling are possible. A warning advise occurs when the electrolyte becomes saturated and the measuring cell filling must be changed.

Stand with free swiveling support plate for middle and small parts with random forms.

Stand for small parts with plane surfaces measurable without special specimen support.

Stand, especially for coating thickness measurements at wires.

Couloscope CM2

Stand for big and small parts with random forms. A support arm is available for middle and small parts. Controlled filling and emptying of the cell by means of a pump. Multiple measurements with one cell filling are possible. A warning advise occurs when the electrolyte becomes saturated and the measuring cell filling must be changed.

Stand with free swiveling support plate for middle and small parts with random forms.

Stand for small parts with plane surfaces measurable without special specimen support.
