Hitachi CMI155 & CMI157

Advanced coating thickness on ferrous and non-ferrous metal substrates

RAPID AND RELIABLE INSPECTION OF PAINT, LACQUER, AND PROTECTIVE COATINGS ON METAL SUBSTRATES The CMl155 and CMl157

are capable of measuring the thickness of a single layer or the total thickness of applied coatings on steel, aluminium and other metals. The base of the probe is designed for measurement of smooth surfaces with an extended measurement range.

These gauges are ideal metrology tools for:

| Paint & powder coaters.

| Coating inspectors.

| Automotive and aerospace finishers.

| Electroplating plants.

One touch easy operation. | Factory calibrated. | Automatic detection of substrate. | Integrated probe. | Casing IP52 rated, protects against dust and water.

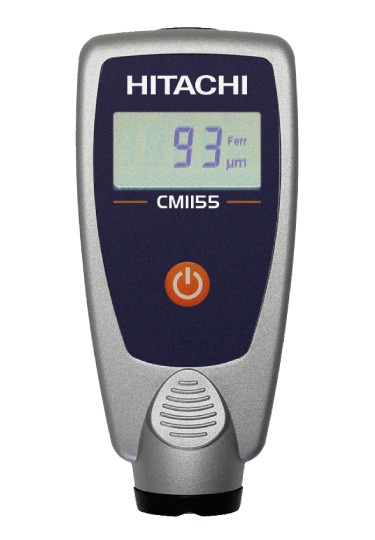

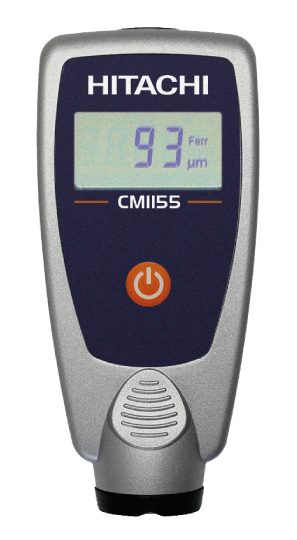

                                                CMI155

Magnetic induction technology for non-magnetic coatings (paint, powder coat, zinc, cadmium) over ferrous and magnetic steel.

Measurements taken conform to the following specifications:

                | ASTM D709.            | ASTM B499.

                    | ASTM B530.            | DIN EN ISO 2178

Download technical brochure of Hitachi 150 Series

CMI155

CMI157

Key Features

                                                    CMI157

Choose eddy current technology for non-conductive coatings (paint, powder coat, epoxy, lacquer) over non-ferrous metals like aluminium, magnesium or copper.

Measurements taken can provide compliance for the following specifications:

          | ASTM B244.            | ASTM B529.             | DIN EN ISO 2360.

CMI150 SERIES DUAL TECHNOLOGY

/

/

/

/
