Complied with ASTM B504, B298, B355 and ISO Standard 2177

Product Video

The 6000 breaks new ground and sets new standards in accuracy and performance with an exceptional combination of capability and price. Recognized as the developer of the first commercial coulometric tester, more Kocour testers are in use today than all other competitive makes combined.

Kocour systems are designed to the same standards, they don't all deliver the same performance. The 6000's microprocessor based circuitry offers access to over 300 coating/substrate applications. From parts as small as a screw to as large as an electro-galvanized coil, or from multilayer coatings to alloy layers formed during or after manufacturing, the 6000 meets the demands of modern industry with unmatched precision.

Measure anything from 50 nm and 50µm

Measuring method:

Coulometry by anodic stripping

Measured value memory:

Measures the electro-chemical potential difference between duplex and triplex nickel layers (STEP).

Measuring Range :

Depending on the coating-base material combination and the removal speed 50nm- 50 µm

Inbuilt Feature :

Almost 100 predefined measuring tasks for different coating systems (such as zinc on iron or nickel on brass)

Speed Selection :

Simple selection of the detachment speed (0.1 - 50 µm/min) and the detachment area (0.6 - 3.2 mm Ø)

Measuring method: Coulometry by anodic stripping

Product Brochure

Measuring Speed :

30-60 seconds per test

Applied Standard :

Functions for STEP test measurement in accordance with ASTM B764 - 04 and DIN EN 16866

Data Transfer mode :

Simple data transfer via USB interface

Thickness is determined by the current and time required to remove the plating.

100+ Years of experience & support

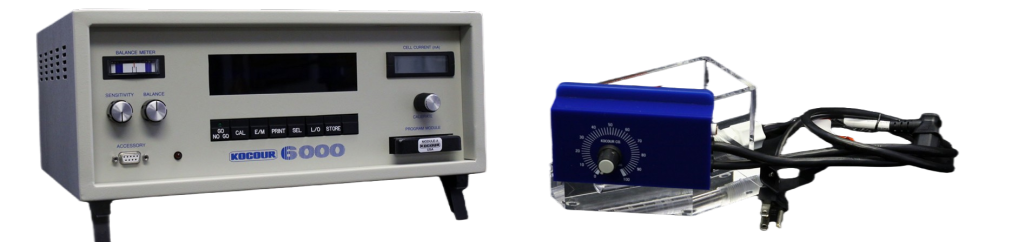

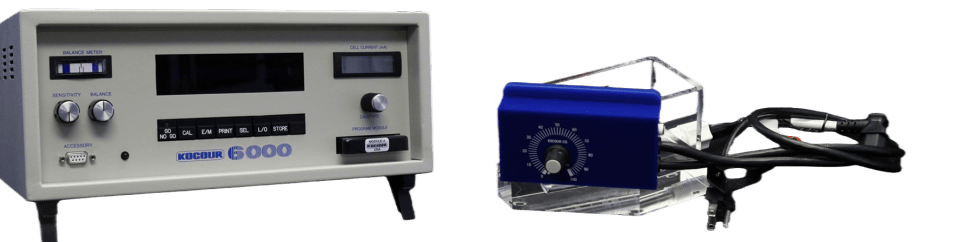

Kocour 6000
