Robust and ideal for
ambitious measuring tasks

Product Video

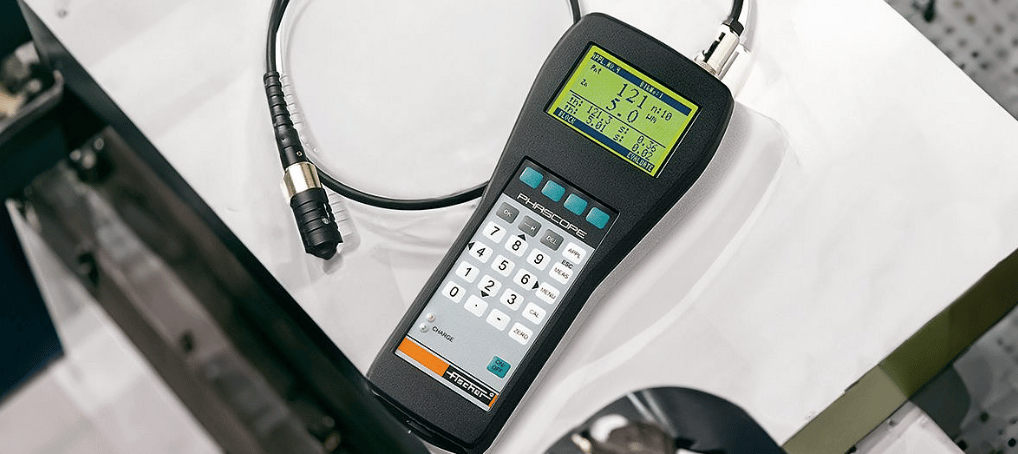

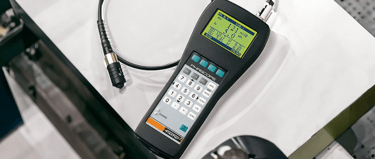

PHASCOPE PMP10

The classic for the most complex applications.

The most experienced device in our tactile portfolio – reliably solves all special applications.

Unique on the market:
Phase sensitive eddy current method

Own calibration standards
for reliable measured values

Ambitious tactile coating thickness measurement.

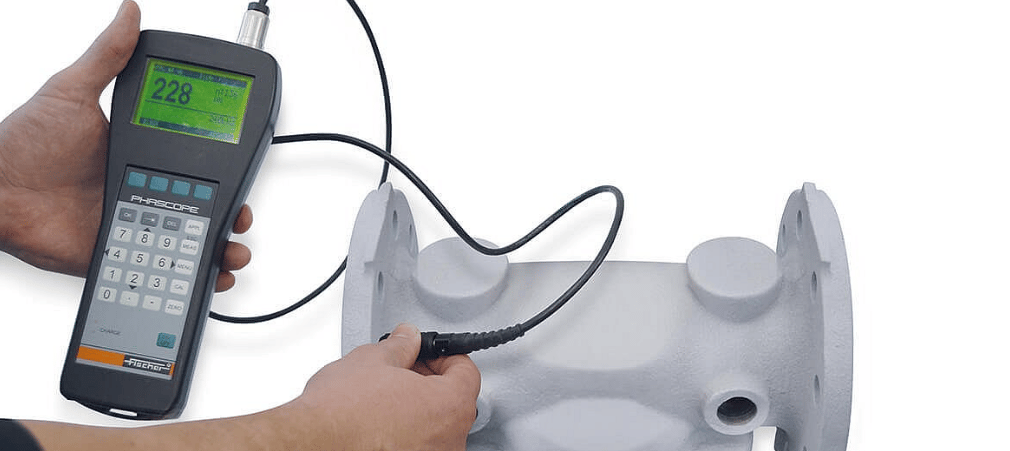

The PHASCOPE PMP10 is ideal for quality control of metal coatings and has clever functions that increase the efficiency of your quality assurance process. In conjunction with the appropriate probe, it enables quick measurement of the thickness of a wide variety of coatings, even on small test parts or in hard-to-reach areas. Even rough surfaces can be tested with absolute precision and reliability using the compact handheld device.

Measurement in just one pass.

Optimize quality processes and save time when measuring paint and zinc coatings

Quick-measure design.

Automatic base material recognition simplifies measurement on steel or aluminum, as probe does not need to be changed

Your security.

Reliable measurement results on curved measuring surfaces and rough surfaces

Predestined for small parts.

Thanks to measurement with the phase-sensitive eddy current test method

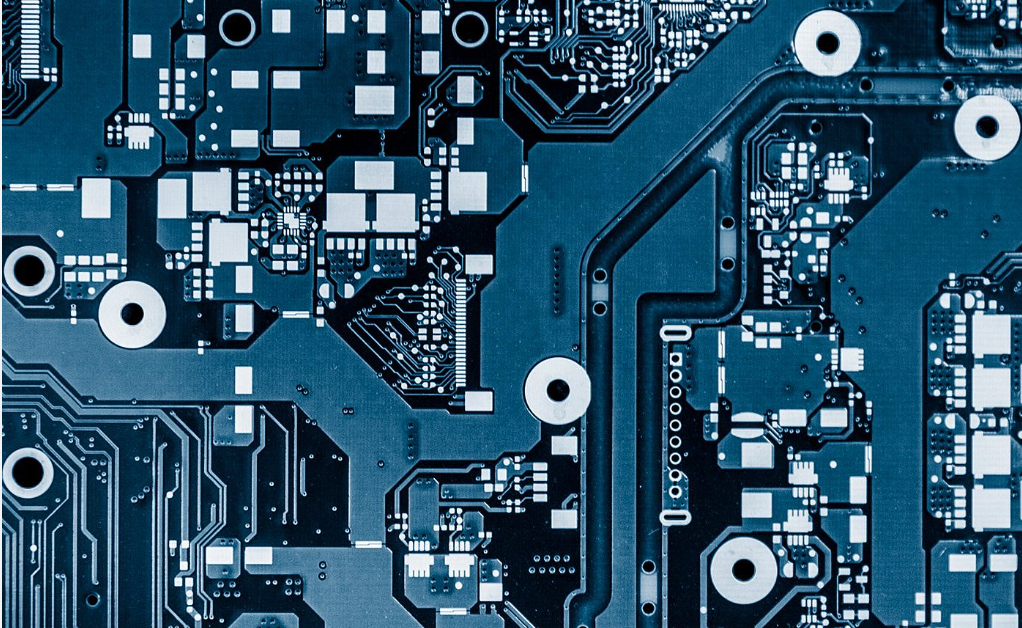

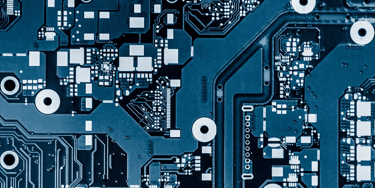

With a special probe design, measurement can also be carried out in PCB holes

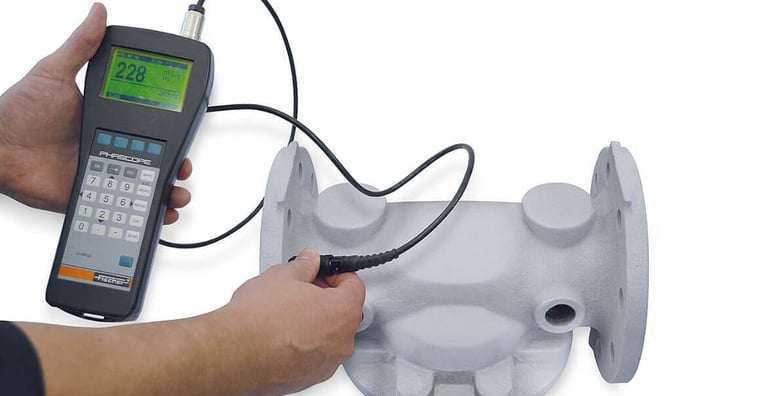

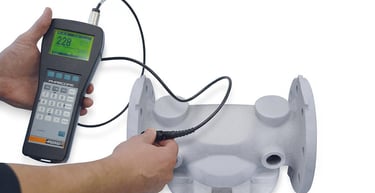

Ideal for measuring the coating thickness of nickel, zinc or copper on steel especially when measuring on rough and small parts

The function of Phascope PMP 10 save time and optimize quality assurance process in the electroplating and PCB industry

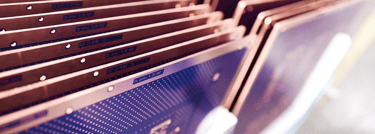

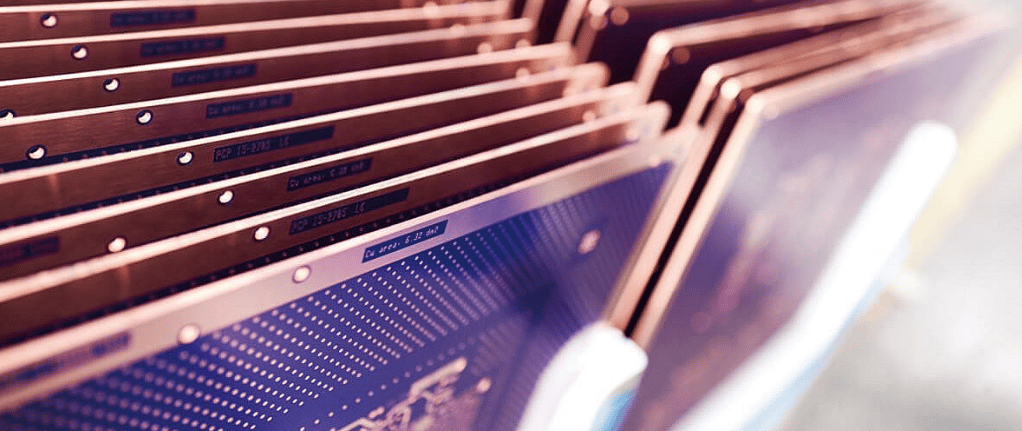

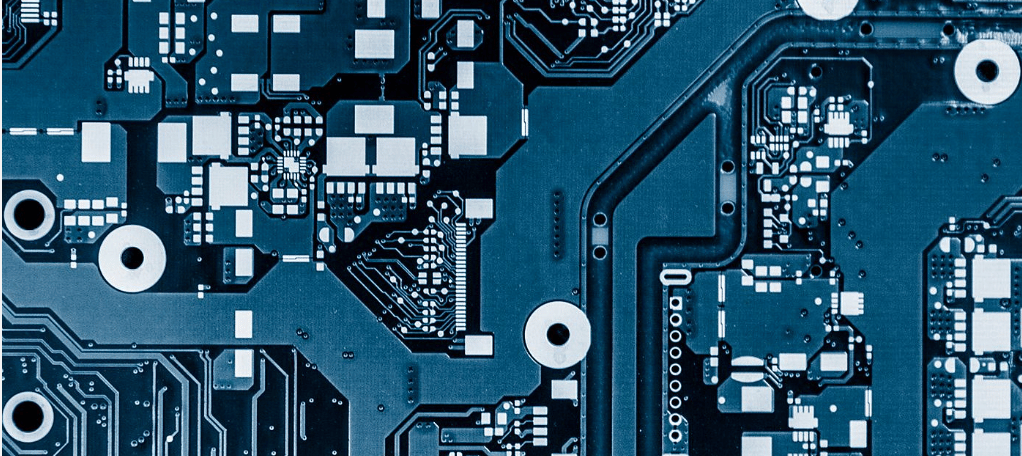

Determination of the thickness of copper plating on PCBs -contactless directly through a protective lacquer layer

Measured value memory:

20,000

Measuring method

Phase-sensitive eddy current method

Data transfer

via RS232 interface, optional USB

Measuring range:

Depending on coating-base material combination and probe used 1 - 200 µm

Probes available

for a wide range of applications

Battery operation

and continuous operation via supplied plug-in charger

Product Brochure

/

/

/
