Wireless Coating Thickness Gauge

Bluetooth sensor for coating thickness measurement for use with a tablet or smart phone.

Easy to use

• start the SmarTest app

• switch on the sensor

• take measurements

SmarTest

Intelligent Bluetooth Sensor for Coating Thickness Measurement

Can be connected to any SIDSP sensor

Transfer of measuring data via Bluetooth, range of approx. 10 m

SmarTest

is an intelligent wireless sensor for non-destructive coating thickness measurement and relays sensor data via Bluetooth to your tablet, smart phone or to the coating thickness gauge MiniTest 745.

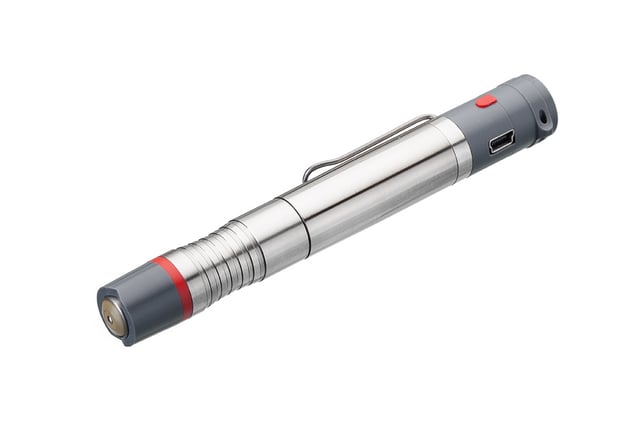

The radio sensor SmarTest has a diameter of 16 mm and a length of 125 mm and weights just 48 g. This means that you can carry the SmarTest with you anywhere.

Key Features

|Battery charge lasts for more than 8 hours of operation |Storage and transmission of measuring data in the CSV format |Batteries are charged using a mini USB socket

Application

Non-destructive coating thickness measurement of:

• Non-magnetic coatings like varnishes, enamels, chromium and zinc on ferromagnetic base materials (e.g. steel)

• Insulating coatings like varnishes and anodising aluminium on nonferrous metals (e.g. aluminium, austenitic stainless steel, brass)

Measuring Modes

There are two measuring modes available:

• Single value mode
  The measurement values are taken individually and displayed. This enables you to take coating thickness values of the object to be measured at multiple points and then to evaluate them statistically.

• Continuous mode
  After placing the sensor, the measuring values are taken continuously and displayed. This mode is suited for calculation of layer thickness distribution on a restricted surface and to locate the thin and thick sections. The measuring values calculated on continuous mode can be saved in the statistics by briefly pressing the power button.

Download technical brochure of SmarTest

Product Video

SmarTest is delivered as a kit including:

• SmarTest

• Calibration set with calibration foils and reference zero test plate(s)

• USB charger with micro-USB cable

• Operating manual

• Manufacturer‘s certificate

• Storage case
