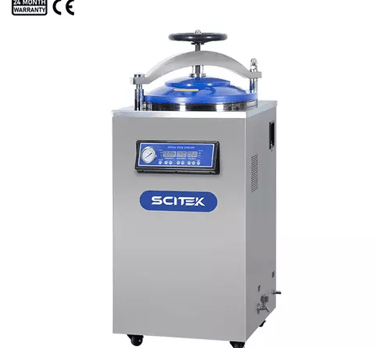

Vertical Autoclave

A vertical autoclave is a type of steam sterilizer designed with a top-loading chamber, making it compact and ideal for smaller spaces. It is commonly used in laboratories, medical facilities, and research institutions to sterilize equipment, media, and other materials using high-pressure saturated steam. Vertical autoclaves are a practical choice for smaller-scale sterilization needs, offering efficiency, affordability, and space-saving benefits. They are particularly well-suited for labs or facilities that do not require the larger capacity of horizontal autoclaves.

• Laboratories: Sterilizing glassware, media, and small instruments.

• Medical Facilities: Sterilizing small surgical tools and equipment.

• Research Institutions: Decontaminating biological waste and lab materials.

• Educational Institutions: Used in teaching labs for sterilization purposes.

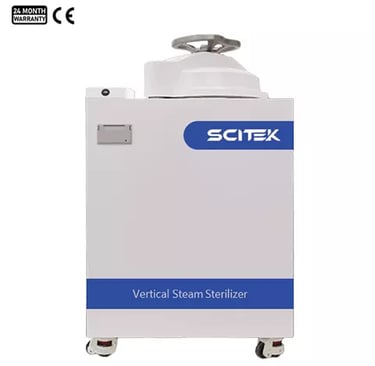

Model : ST-V50E; ST-V80E; ST-V100E;

Capacity (L) : 50 / 80 / 100
Sterilization Temperature (℃) : 105~136
Max. Sterilization Pressure (Mpa) : 0.23
Drying Function : YES
Water Injection Method : Manual
Drying Time : 15min
The economical vertical pressure steam sterilizer is suitable for routine sterilisation in the laboratory.

Manufacturers and Solutions

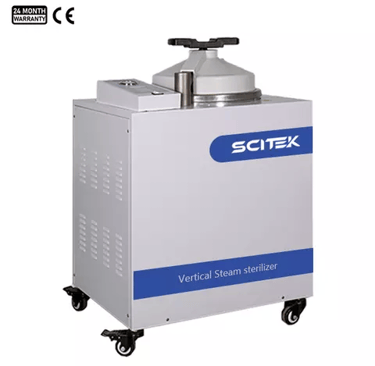

Economical Vertical Pressure Steam Sterilizer

Model : ST-VG35; ST-VG50I; ST-VG75; ST-VG100I

Volume : 35L; 50L; 75L; 100L
Design Temperature : 139℃
Rated Working Pressure : 0.22MPa
Rated Working Temperature : 134℃
Professional grade self-control drying vertical pressure steam sterilizer ideal for all general medical and laboratory applications.

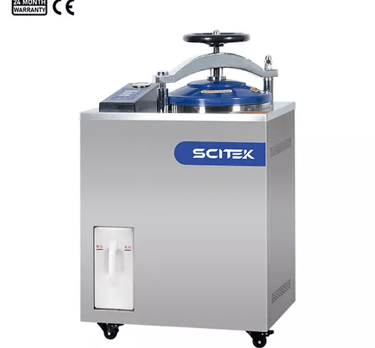

Vertical Pressure Steam Sterilizer, Self-control Drying

Vertical Pressure Steam Sterilizer, Digital Display Self-control

Model : ST-VB35; ST-VB50; ST-VB75; ST-VB100

Volume : 35L; 50L; 75L; 100L
Design Temperature : 139℃
Rated Working Pressure : 0.22MPa
Rated Working Temperature : 134℃
High-performance, easy-to-operate steriliser with a maximum sterilisation temperature of 135°C, suitable for protein modification.

Model : ST-VL65; ST-VL80; ST-VL90; ST-VL110

Capacity : 62L; 80L; 88L ;110L
External Size(WxLxH)(mm) : 550×640×900; 550×640×1150
Consumption : 4000W
Standard Accessory : Mesh basket or tote bag, gloves, and drain hose.
Professional grade vertical pressure steam autoclave is perfect for all general medical and laboratory applications.

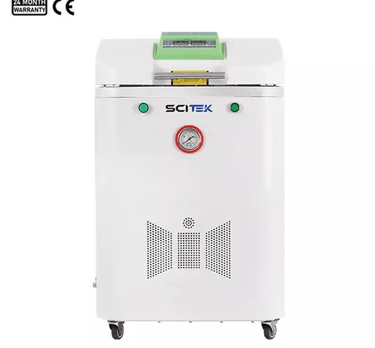

Vertical Pressure Steam Autoclave, ST-VL Series

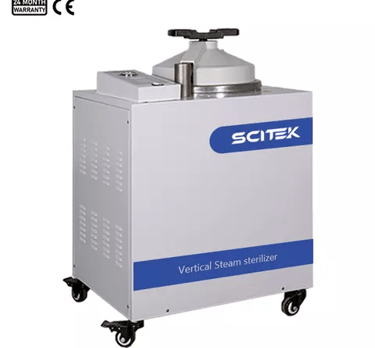

Vertical Pressure Steam Sterilizer, ST-VG Series

Model : ST-VGA50; ST-VGA80; ST-VGA100; ST-VG50; ST-VG80; ST-VG100; ST-VG120

Ambient Temperature: 5℃~40℃
Relative Humidity : ≤85%
Highest Working Pressure : 0.25Mpa
Atmospheric Pressure: 70kpa~106kpa
Power Supply : AC 220V ± 22V, 50Hz ± 1Hz
Note: Manufacturers and users should consider the impact of local atmospheric pressure on sterilizer parameter settings when using sterilizers.

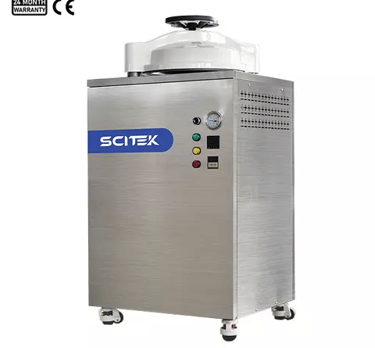

Vertical Pressure Steam Sterilizer, ST-VLA Series

Model : ST-VLA50; ST-VLA80; ST-VLA100; ST-VL50; ST-VL80I; ST-VL100; ST-VL120

Temperature (℃) : 121℃-134℃
Highest Working Pressure : 0.25Mpa
Temp.Accuracy : 0.5℃
Design Pressure : 0.28~0.3Mpa
Designed to meet today's ever-changing laboratory sterilisation needs, this autoclave is designed to sterilise solids and liquids quickly, safely and easily.

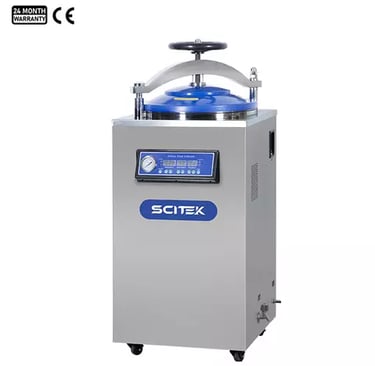

Vertical Pressure Steam Sterilizer, Internal Circulation Drying

Model : ST-VX35; ST-VX50; ST-VX75; ST-VX100

Volume : 35L; 50L; 75L; 100L
Design Temperature : 139℃
Rated Working Pressure : 0.22MPa
Rated Working Temperature : 134℃
Professional grade multifunctional self-control vertical pressure steam sterilizer ideal for all general medical and laboratory applications.

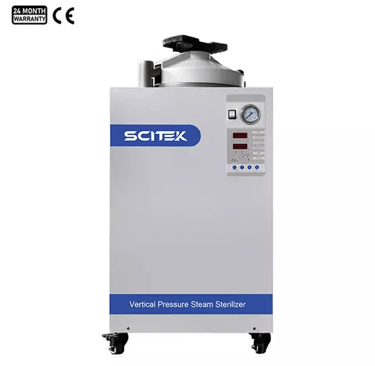

Vertical Pressure Steam Sterilizer

Model : ST-VPA50; ST-VPA80; ST-VPA100; ST-VP50; ST-VP80; ST-VP100; ST-VP120

Highest Working Pressure : 0.25Mpa
Temperature(℃) : 121℃~134℃
Temp.Accuracy : 0.5℃
Design Pressure : 0.28~0.3Mpa

Model : ST-V50A; ST-V80A; ST-V100A; ST-V120A; ST-V150A

Sterilization Temperature (℃) : 105~136
Max. Sterilization Pressure (Mpa) : 0.23
Drying Function : YES
Water Injection Method : Built-in water tank
Drying Time : 15min
The automatic vertical autoclave with LCD touch screen and water tank has the advantage of a continuous water supply and improved sterilisation results, making it an efficient sterilisation option for laboratories.

Automatic Vertical Autoclave 50/80/100/120/150L
